[DRAFT]Technical Bulletin B-113: SPEEDCHECK-MX partial display dim

Carmanah’s technical bulletins are intended to provide updates, clarification, and guidance on the installation and maintenance of our products. They convey relevant product information to our partners and customers. Please contact us if you have any questions about the content of this bulletin.

Originally posted XX/XX/XXXX.

Product Applicability

This bulletin applies to the following product:

MX Series: SPEEDCHECK-MX

Background

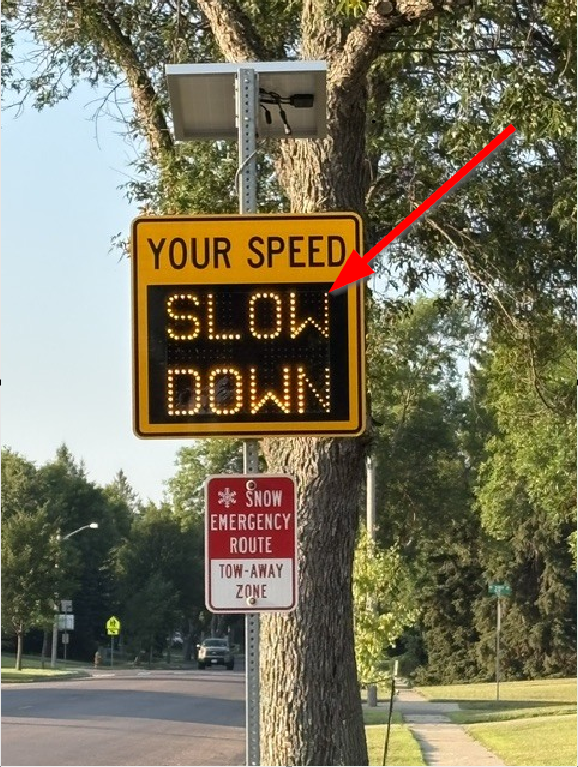

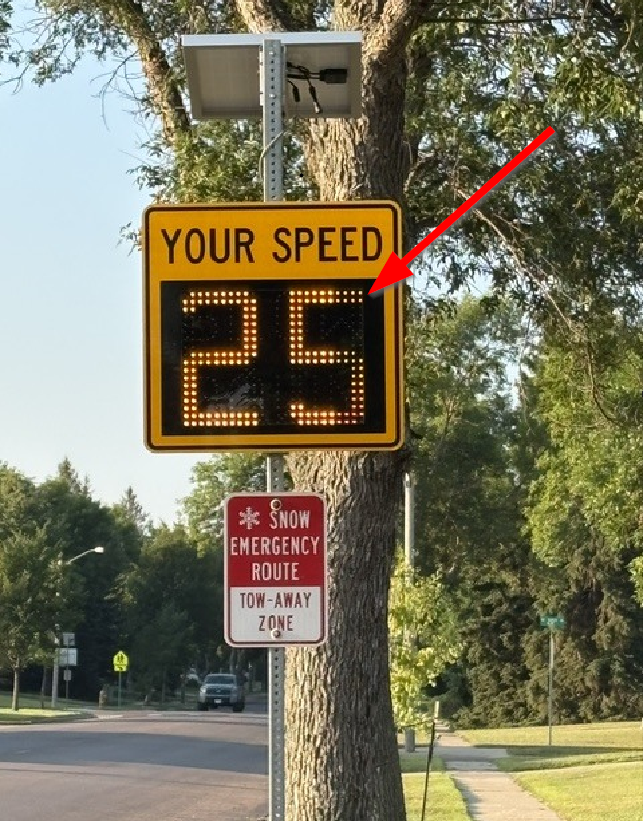

You may encounter the far right end of the radar speed sign display dimmer than the rest of the display. This can affect both numerical digits and the SLOW DOWN message.

The system is fully operational and will continue to function (run its schedule, display vehicle speeds, collect vehicle data...etc). The issue is "cosmetic" in nature where the LED brightness is not uniform across the entire display.

Right click the images below and open in a new tab for a closer view.

Procedure

A firmware update is required to version 1.2.90 or newer. Carmanah will be proactively deploying an "over-the-air" updating starting XX/XX/XXXX for systems in the field that are running firmware version 1.1.5 or lower.

If you wish to manually update the firmware on the system, please see our article here.

System will be unavailable for a short period of time during the update. Updates will be carried out overnight during non-peak operational hours.
