How do I align the MX SpeedCheck Module to the roadway?
This article details the aligning the MX SpeedCheck Module to the roadway during installation.
Product applicability
The following products are discussed in this article:
- MX Series: SPEEDCHECK-MX
Local road elevation and curvature must be taken into account when installing a SPEEDCHECK-MX radar speed sign. The radar beam (aligned with module front face) must be aimed at the target traffic to ensure proper operation.
| Proper Installation Locations, Tilt, and Alignment | |
|---|---|
|
|

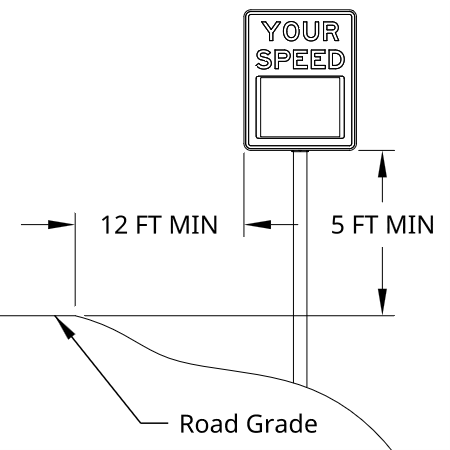

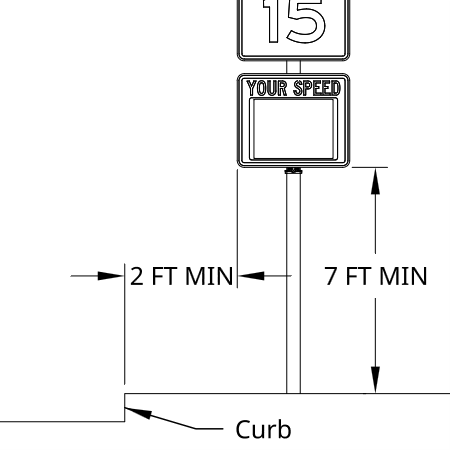

Ensure mounting height is set properly for your location. See our article here for more information.
In compromised locations see our article here on the optional tilt/pan kit.
