How do I locally schedule my MX SpeedCheck Module?
This article discusses how to locally program a schedule for your MX SpeedCheck Module in the MX Field App.
Product applicability
The following products are discussed in this article:
- MX Series: SPEEDCHECK-MX
MX Series is a modular, highly configurable, traffic safety product family with remote connectivity. SPEEDCHECK-MX takes our core radar speed sign functionality and integrates remote and local connectivity standard with each system.
- Each system contains local connectivity via Bluetooth - using MX Field App.
A schedule can be built and uploaded to a system from your mobile device:
- Open the MX Field App.
- Tap on Schedules in the bottom dock and build your schedule.
- Tap on the system you wish to connect to.
- If required gain access to the MX SpeedCheck Module and pair with the system.

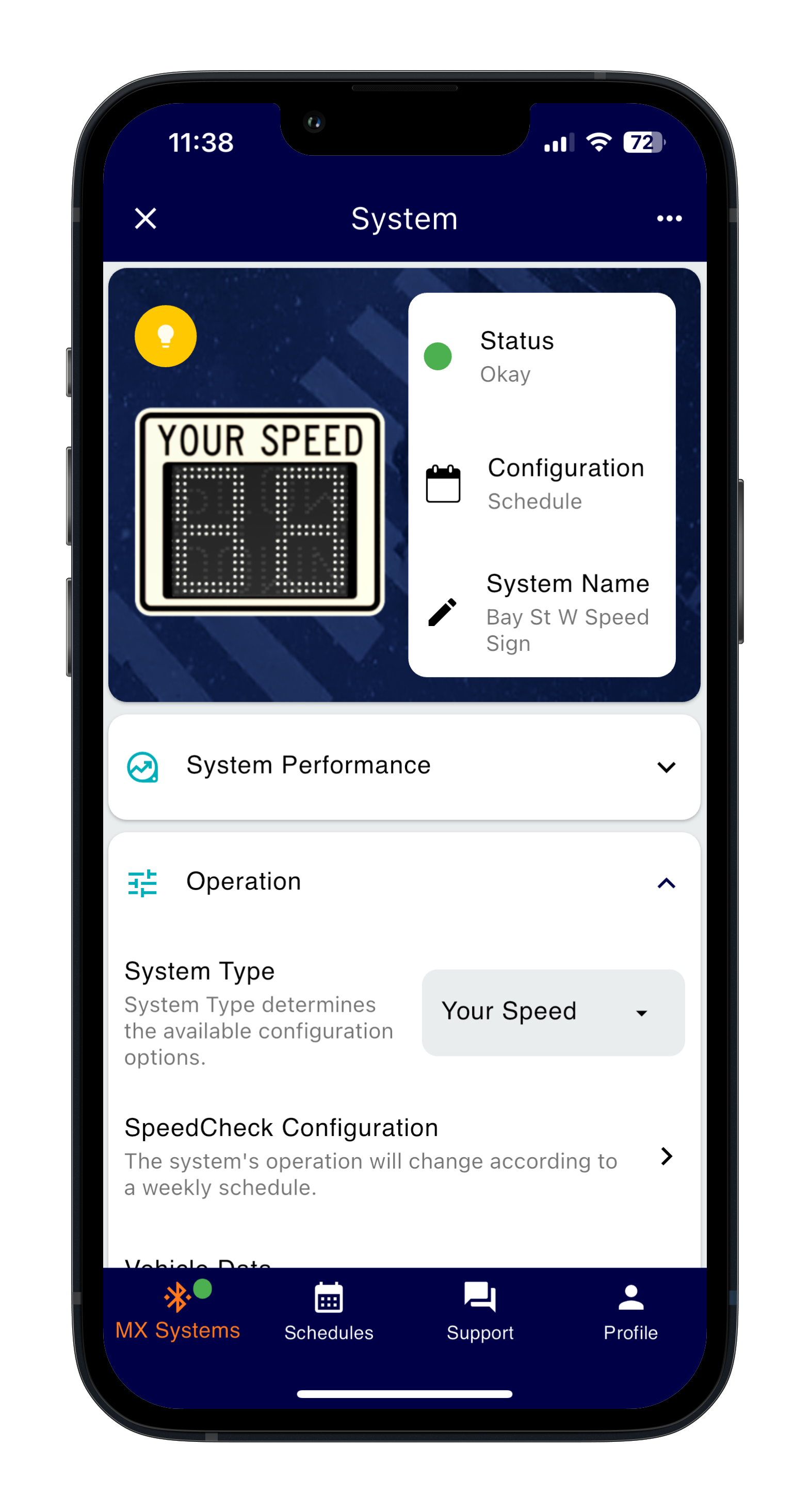

- Tap on Operation and then SpeedCheck Configuration.
- Set Sign Mode to Schedule.
- Tap on New Schedule and choose the schedule created in step 2. Tape Save to complete.
For complete instructions please see the MX Field App Guide here.
|
|
|
If there is an existing schedule loaded into the system from MX Cloud, any schedule you load locally via MX Field App will overwrite it and will be reflected so in MX Cloud.
There will be a “mobile device” icon for locally programmed or “cloud” icon remotely programmed schedule.
