How do I configure the Polara iNX/iDX push button?

Follow these basic steps to configure your Polara iNX/iDX push button as part of your Carmanah beacon system.

Product applicability

The following products are discussed in this article:

  • E Series: R920-E and R820-E
  • F Series: R920-F and R820-F
  • G Series: SC315-G and R820-G
  • MX Series: R920-MX
Polara iNX Polara iDX (touchless)

  1. Check the wiring at the pushbutton (see inset image below)
  2. Download the Polara Field Service App - mandatory
  3. Update firmware - recommended (if prompted)
  4. Change default password - mandatory
  5. Change LED Flash Behavior (see inset image below)
  6. Change locator tone and speech message settings as required - optional

Push Button Wiring:

Note: GND and PWR terminals may have dielectric grease applied.

Only remove enough of the grease to access screw terminals and interior wire clamps on the terminal block.

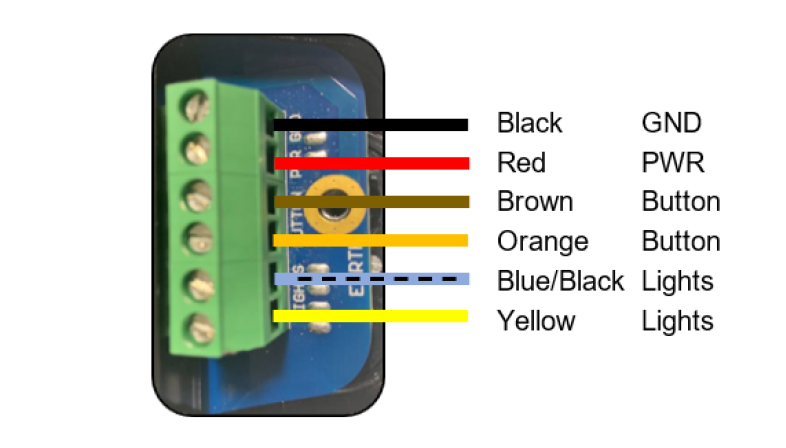

  1. Push button wiring with standard Gen 3 Series product color coding:

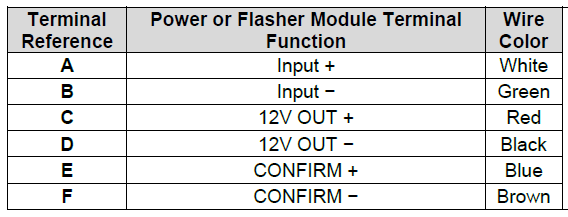

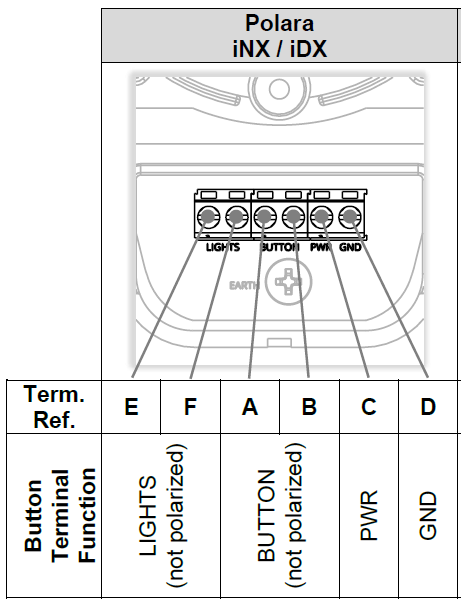

  1. Push button wiring with standard MX Series product color coding:

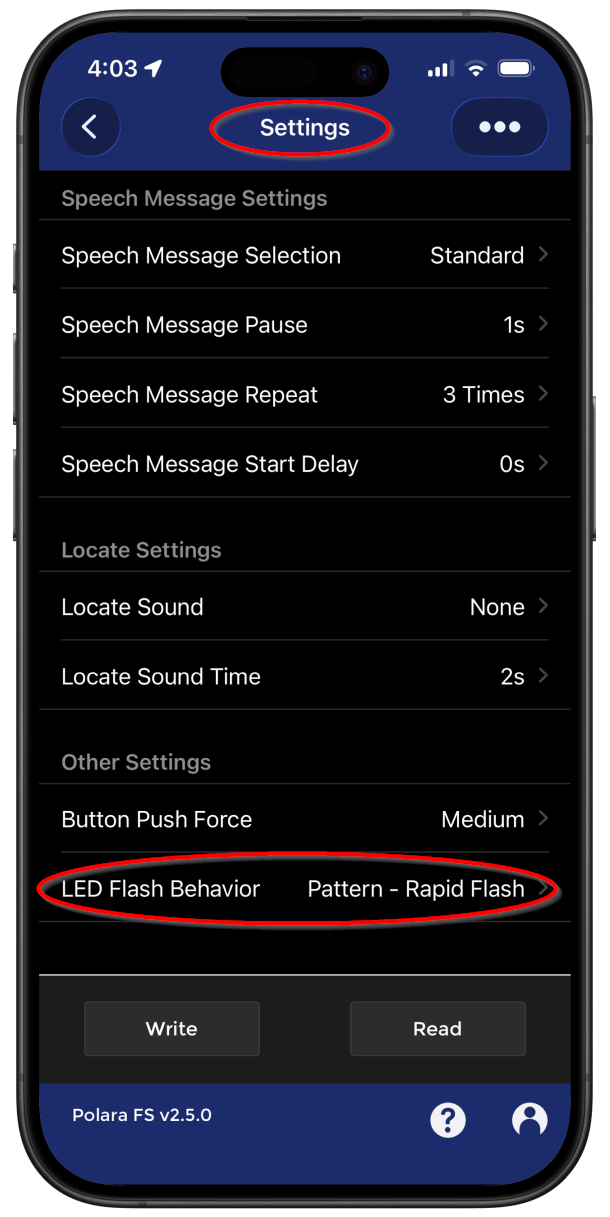

LED Flash Behavior:

Note: This setting is required to enable "Speech Message Repeat" >1
